MP Filtri S.p.A. is an Italian multi-national company specialising in filtration products for the hydraulic fluids sector, founded by Bruno Pasotto in 1964, with its headquarters at Pessano con Bornago (Milan).
Most production is carried out at its Italian facilities in Lombardy. It currently has eight trading and operational subsidiaries in Germany, France, Great Britain, the United States, Canada, Russia, India and China and a global network of retailers and distributors in over 100 countries.
The group’s total turnover in 2014 was 50.720.000 euro, a 10% increase on the previous year. Over 300 highly qualified people are employed across the world. There are two production facilities in Italy and one in Great Britain. Production is intended 30% for the Italian market and the remaining 70% for the international market.

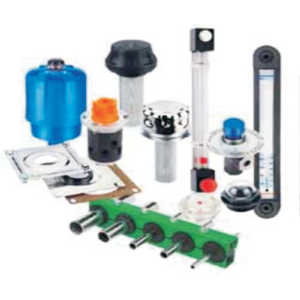

Accessories
MPFiltri Accessories
– TA series Filter Breather
– LVA-LVU series oil level gauges
– LEN-LEV series Electrical level gauges

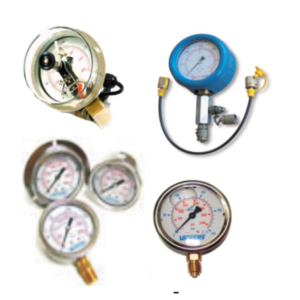

Pressure Gauge
– Quality range of 63 and 100 mm DIA – Glycerine filled Gauges
– Stainless steel construction
– Testpoint

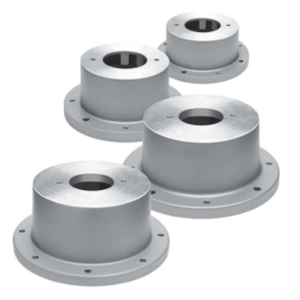

Bell Housing type LMC series
– Material : Aluminium
– Working temperature from -30°C to +80°
– size 80 electric motors to 30 kW, frame size 225 electric motors

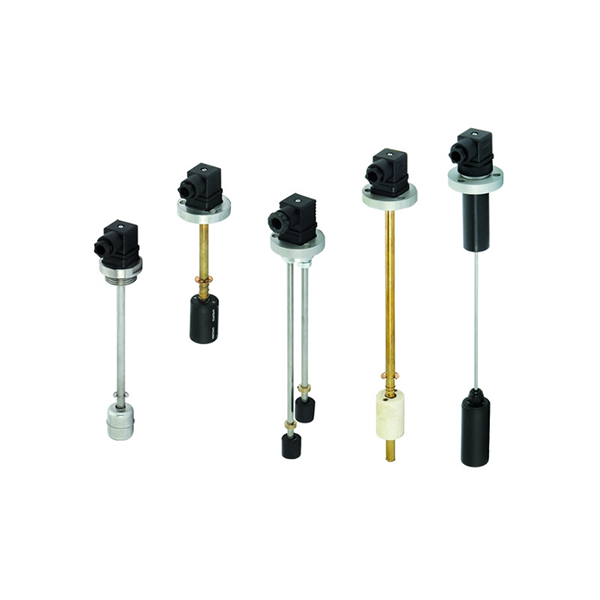

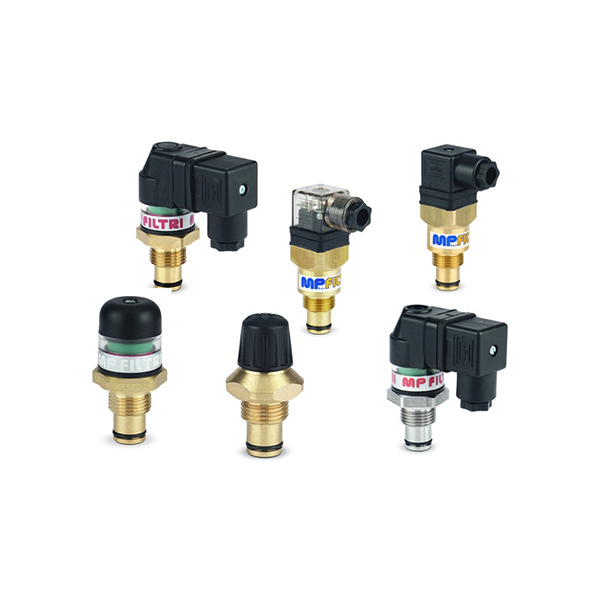

Limit Switch type LEN series
Pressure Switch type SPG series

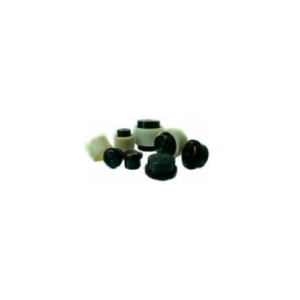

Coupling

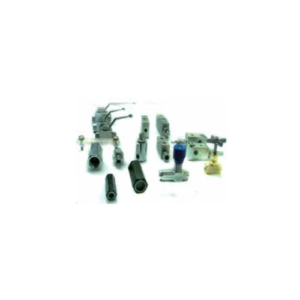

Ball Valves, Check Valve, Flow Control

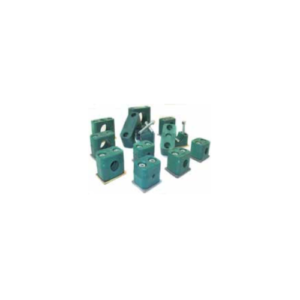

Pipe Clamps

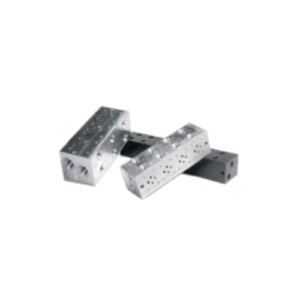

Manifold Block
Filters

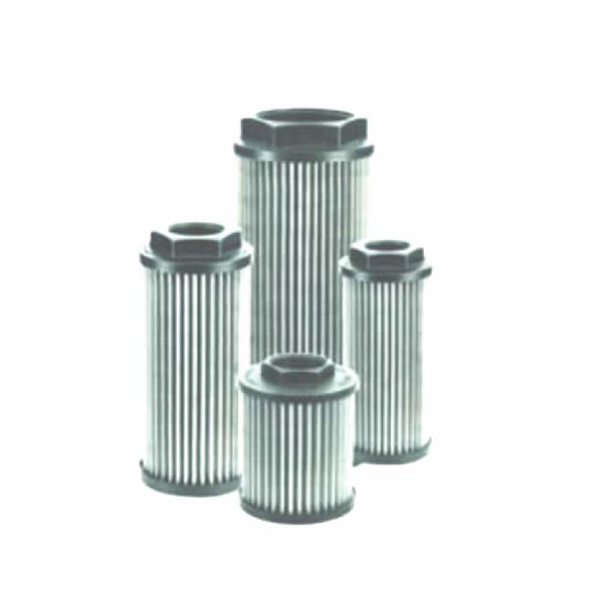

SF2-250, FAS and STR series Suction Filters
– Flow rates: from 10 – 150 L/min (SF2-250), 25 – 850 L/min (FAS), and 5 – 600 L/min
– Element media: cleaneble wire mesh
– Port options: BSP; NPT; (STR) or SAE flange

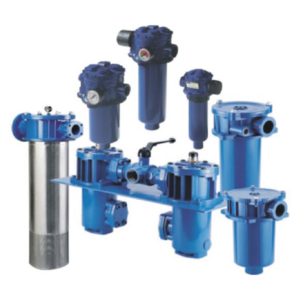

MPF, MPT, MPH/MPI, and FRI Returns Filters
– Max working pressure: 3 bar(MPF), 7 bar(MPT, MPH/MPI), and 20 bar(FRI)
– Flow rates: from 10-800 L/min(MPF), 10-150 L/min(MPT), 50-1000 L/min(MPH/MPI), 30-1200 L/min(FRI)
– Element media: glass fibre, resin impregnated cellulose or wire mesh
– Port options: BSP; NPT; and SAE flange
– DUPLEX model also available for only FRI series

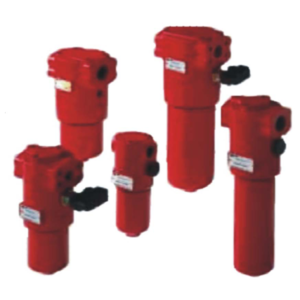

FHB, FHM, FMM, FHA, FMP, and FHP series Pressure Filters
– Max working pressure: 320 bar(FHB, FHM, FMM, FHA), 250 bar(FMP), and 420 bar(FHP)
– Flow rates: from 5-350 L/min(FHB,FHM, FMM,FHA), 20-150 L/min(FMP), 20-420 L/min(FHP)
– Element types: 3-60 micron
– Port options: pressure line designed for NG 6 [CETOP 03], or NG 10 [CETOP 05] (FHM), BSP-NPT(FMP), BSP-NPT; SAE flange (FHP)
– Top mounted manifold interface options

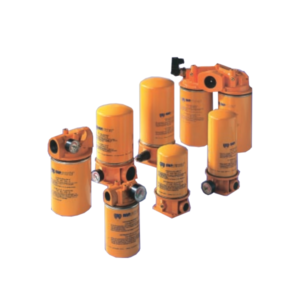

MPS, MST, and MSH series Spin-on Filters
– Max working pressure: 12 bar(MPS,MST), 35 bar(MSH)
– Flow rates: from 25-300 L/min (MPS/MSH), 25-350 L/min (MST)
– Element types: 3-90 micron (MPS/MST), 3-60 micron (MSH)
– Element media: glass fibre, resin impregnatedcellulose or wire mesh
– Indicator: visual or electrical (MPS/MST) differential visual, visual / electrical or electrical (MSH)
– “Thermal Lock-out” electrical indicator option available (MSH Series)
– Mounting: Inline (MPS & MSH), Return line fitted to reservoir cover(MST)
– Port options: BSP-NPT(MST/MSH), BSP-NPT; SAE flange (MPS)
