Marzocchi

Marzocchi Pompe S.p.A. is a company that is dedicated to the exclusive designing, manufacturing and selling of external gear pumps and motors for high performance. Founded in 1961, it is still solidly in the hands of the Marzocchi Family which holds the majority of shares and is present with Paolo Marzocchi as President, who is the son of Guglielmo Marzocchi, one of the two brothers  that founded the company​​.

The Company is a leading manufacturer and the Marzocchi Pompe’s name has become an unquestioned synonym of High Reliability and Quality. Marzocchi Pompe is specialized in micro hydraulics but in the same time has an extended range of products to cover all the standard needs of the market in terms of displacement, flanges, shafts and porting.

Besides Marzocchi Pompe is interested in the continuous development of the product aimed at satisfying new demands from the Customer or Market, such as low noise and energy saving products.

The entire production is developed in Italy and only in Italy. We are proud to use the MADE IN ITALY brand as a synonym of Quality and Excellence.

0.25 – 0.5 Series Micro Gear Pumps

Specification

Displacement    : 0.19 – 1.25 cm³ /rev

Press                     : 190 – 230 Bar

Speed                   : 4000 – 7000 rpm

1P Series Gear Pumps

Specification

Displacement    : 1.1 – 8 cm³ /rev

Press                     : 160 – 230 Bar

Speed                   : 2100 – 6000 rpm

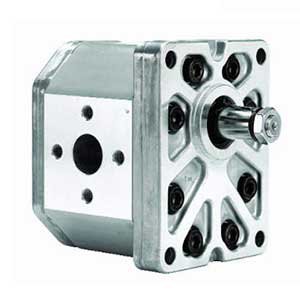

ALP Series Gear Pumps

Specification

Displacement    : 1.4 – 200 cm³ /rev

Press                     : 130 – 250 Bar

Speed                   : 1800 – 6000 rpm

GHP Series Gear Pumps

Specification

Displacement    : 1.4 – 87 cm³ /rev

Press                     : 160 – 280 Bar

Speed                   : 1800 – 6000 rpm

ALP/GHP Series Multiple Modular Gear Pumps

Specification

Displacement    : 1.4 – 200 cm³ /rev

Press                     : 130 – 280 Bar

Speed                   : 1800 – 6000 rpm

ALM Series Gear Motors

Specification

Displacement    : 1.4 – 200 cm³ /rev

Press                     : 130 – 280 Bar

Speed                   : 1800 – 6000 rpm

GHM Series Gear Motors

Specification

Displacement    : 2.8 – 87 cm³ /rev

Press                     : 130 – 280 Bar

Speed                   : 2000 – 5000 rpm

High/Low Pumps

Specification

Displacement    : 1.1 – 8.3 cm³ /rev

Press                     : up to 250 Bar

Speed                   : 1000 – 3500 rpm

ALPC/GHPC Series Short Multiple Pumps

Specification

Displacement    : 1.4 – 35.2 cm³ /rev

Press                     : up to 270 Bar

Speed                   : 1000 – 4000 rpm
