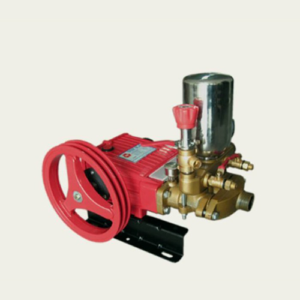

SANCHIN SC 45
|
Dimension |
300x430x450 mm |
|
Weight |
23 Kg |
|
Capacity |
22 ~ 59 L/min |
|
Power Required |
3.5 ~ 5 Kw / 5 ~ 7 hp |
|
Plunger |
33.5 mm x 3 |
|
Revolution |
300 ~ 600 rpm |
|
Max. Pressure |
50 Kg/cm2 |
|
Normal Operating Pressure |
20 ~ 30 Kg/cm2 |

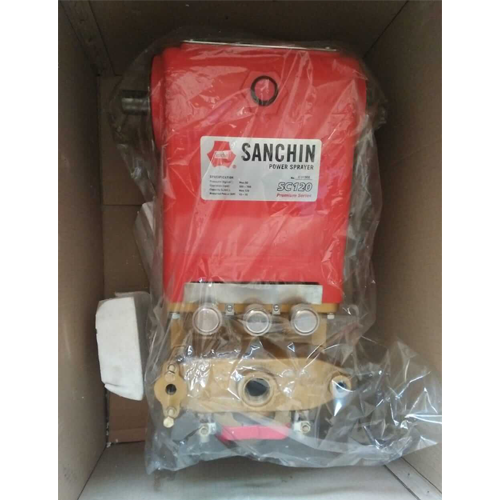

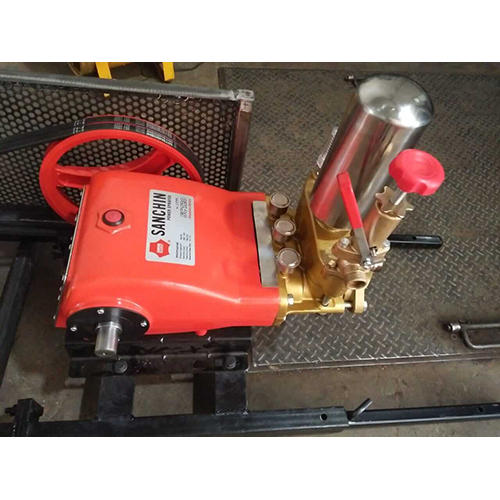

SANCHIN SC 120
|
Dimension |
610x370x580 mm |
|
Weight |
44 Kg |
|
Capacity |
76 ~ 133 L/min |
|
Power Required |
13.4 ~ 20 Kw / 10 ~ 15 Hp |
|
Plunger |
45 mm x 3 |
|
Revolution |
400 ~ 700 rpm |
|
Max. Pressure |
50 Kg/cm2 |
|
Normal Operating Pressure |
20 ~ 45 Kg/cm2 |
